OBD2 TPMS Programming Diagnostic Tool

The T2 TPMS diagnostic and service tool is specially developed to activate any known OEM / Universal TPMS sensor, and reprogram the vehicle's ECU. This will turn off the warning symbol on the dash. This self powered ergonomic tool allows you quick and easy access to the faulty TPMS sensors fitted to the vehicle. This also in turn leads to customer satisfaction and increase in your profit. Tyre shops always run the risk of sensor damage during tire changes and being able to solve this problem by replacing the damaged or defective TPMS while the customer waits. These are day to day problems tire fitment centers face. After all you are the experts.

Why OBDResource T2 OBD2 TPMS Programming Diagnostic Tool Is A Must?

●No relearn after replacement ●Incompatible sensor ●High tire temperature ●Accurately detect and solve tpms problems in maintenance and replacement.

T2 OBD2 TPMS Programming Diagnostic Tool

TPMS is an electronic system that advises the driver of either a low pressure condition or system malfunction for the sensor. This is indicated by a light dashboard in the form of an ICON or other warning, or both. This indicator light is in the form of an exclamation point surrounded by parentheses If the indicator light is flashing, this means there is a malfunction with your tire pressure sensor. This time you need a device to diagnose your tpms sensor . OBDResource T2 obd2 tpms can do this work . After T2 checked, we find the tpms sensor is broken, then you need replace the tpms sensor . OBDResource S1/S2 tpms sensor can easily replace it . So, if you are a car repair shop owner or a auto parts supplier, OBDResource tpms tool and programable sensors is the best choice for you . With this , you can solve the tpms problem of almost 95 % cars .

T2 OBD2 TPMS Programming Diagnostic Tool Product Features

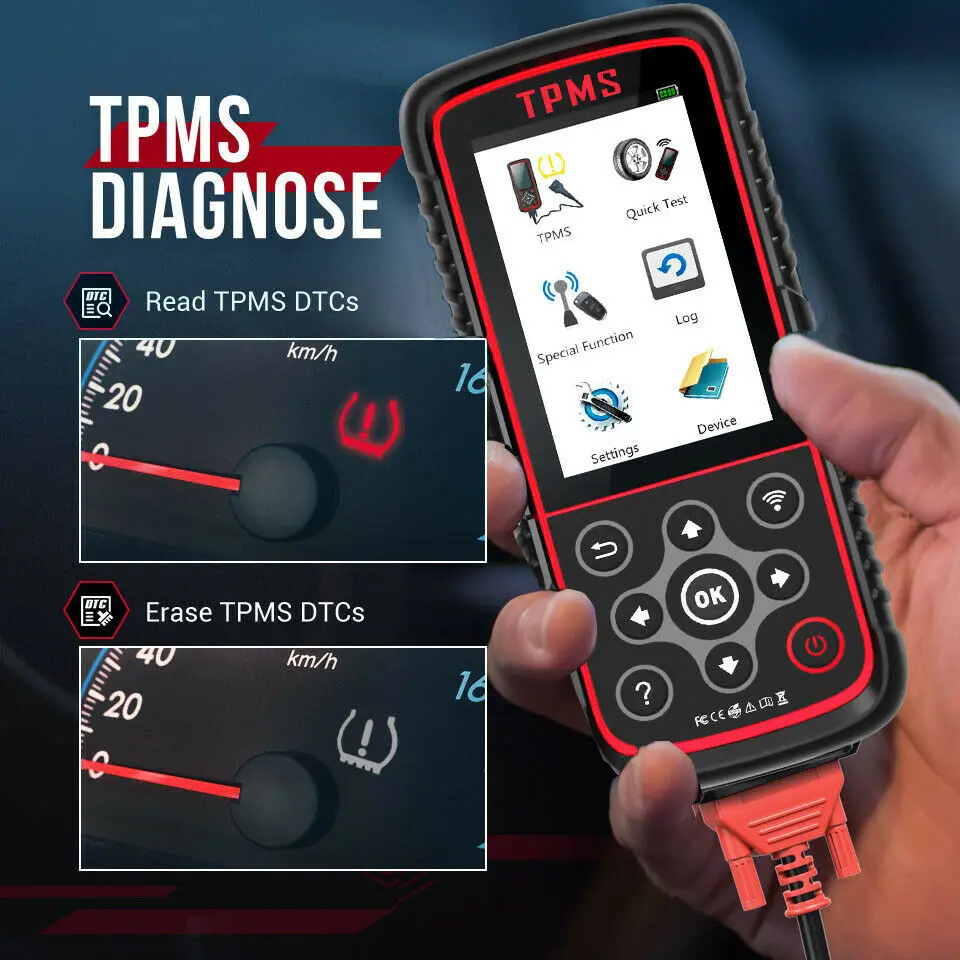

1.Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals 2.Receives both 315MHz and 433MHz signals 3.Reads / writes sensor ID from vehicle ECU 4.Reads / clears codes of TPMS system and reset malfunction indicator light 5.Reads data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information 6.Programs vehicle ECU to learn sensor IDs and positions 7.Checks Remote Keyless Entry (Key FOB) for transmissions 8.Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process 9.Pre-selection process offers faster activation and diagnostics 10.Provides visual and audible responses to confirm sensors are working properly 11.On-screen code definitions 12.Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions 13.Proper LF signal to prevent being fooled by other RF signals 14.Built-in rechargeable Li-polymer battery 15.Set the system automatic power-off time in "setting", to preserve battery life. 16.Lifetime free update on the internet via USB port 17.Ergonomic design features strong housing and protective rubber boot

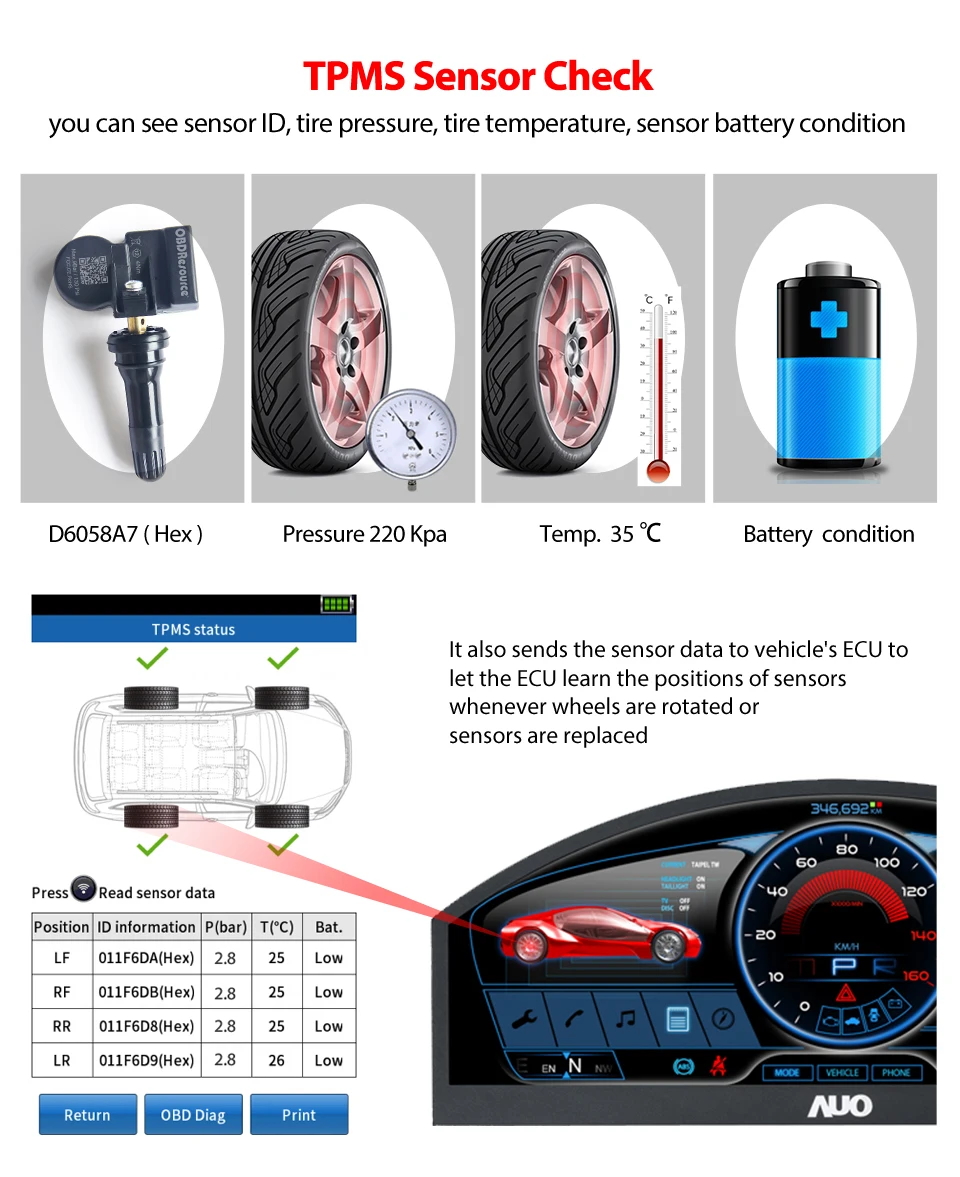

TPMS Sensor Check

You can see sensor ID, tire pressure, tire temperature, sensor battery condition It also sends the sensor data to vehicle's ECU to let the ECU learn the positions of sensors whenever wheels are rotated or sensors are replaced

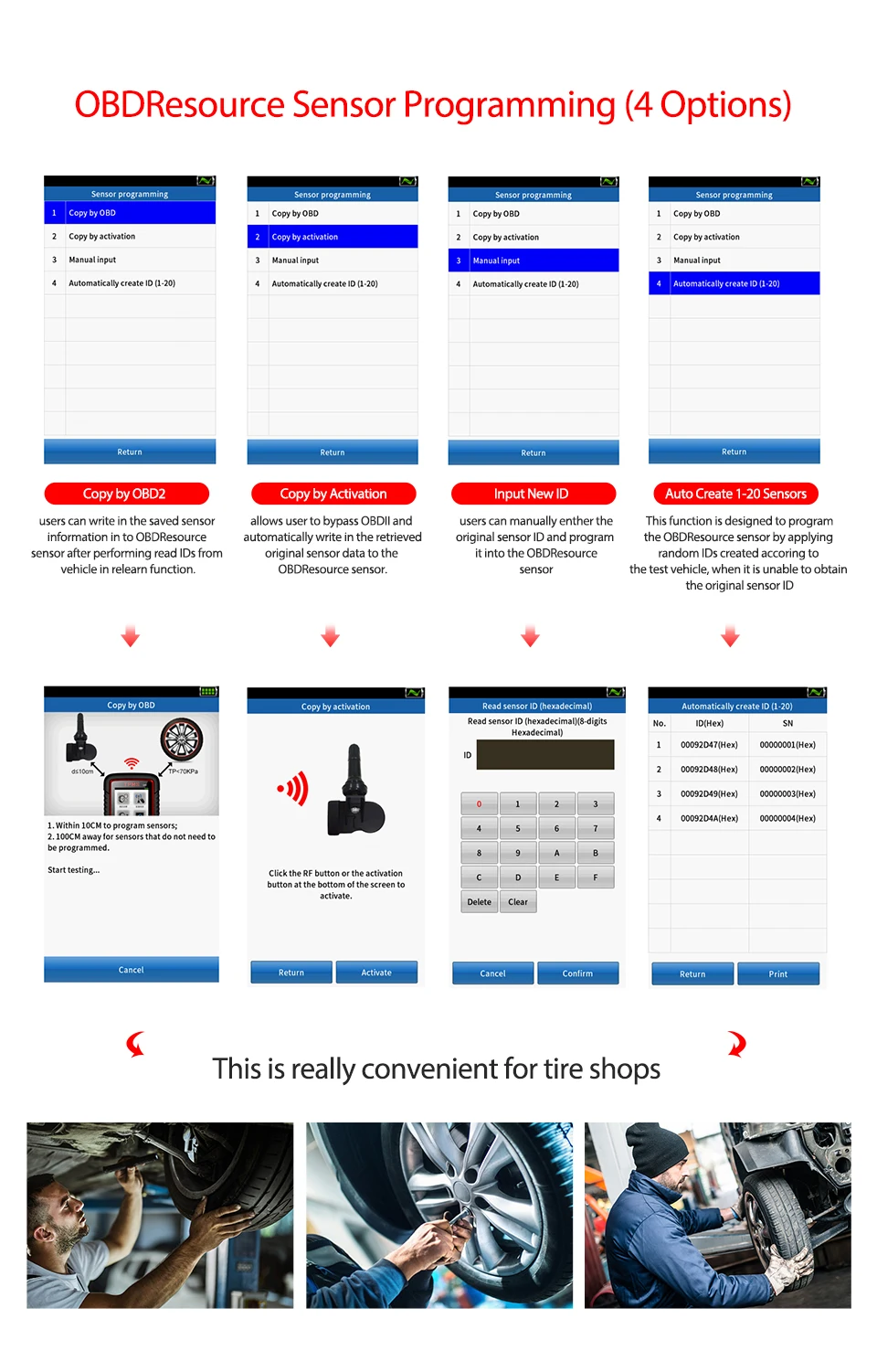

TPMS Sensor Programming (4 Options)

【Copy by OBD2】 Users can write in the saved sensor information in to OBDResource sensor after performing read IDs from vehicle in relearn function. 【Copy by Activation】 Allows user to bypass OBDII and automatically write in the retrieved original sensor data to the OBDResource sensor. 【Input New ID】 Users can manually enther the original sensor ID and program it into the OBDResource sensor 【Auto Create 1-20 Sensors】 This function is designed to program the OBDResource sensor by applying random IDs created accoring to the test vehicle, when it is unable to obtain the original sensor ID This is really convenient for tire shops

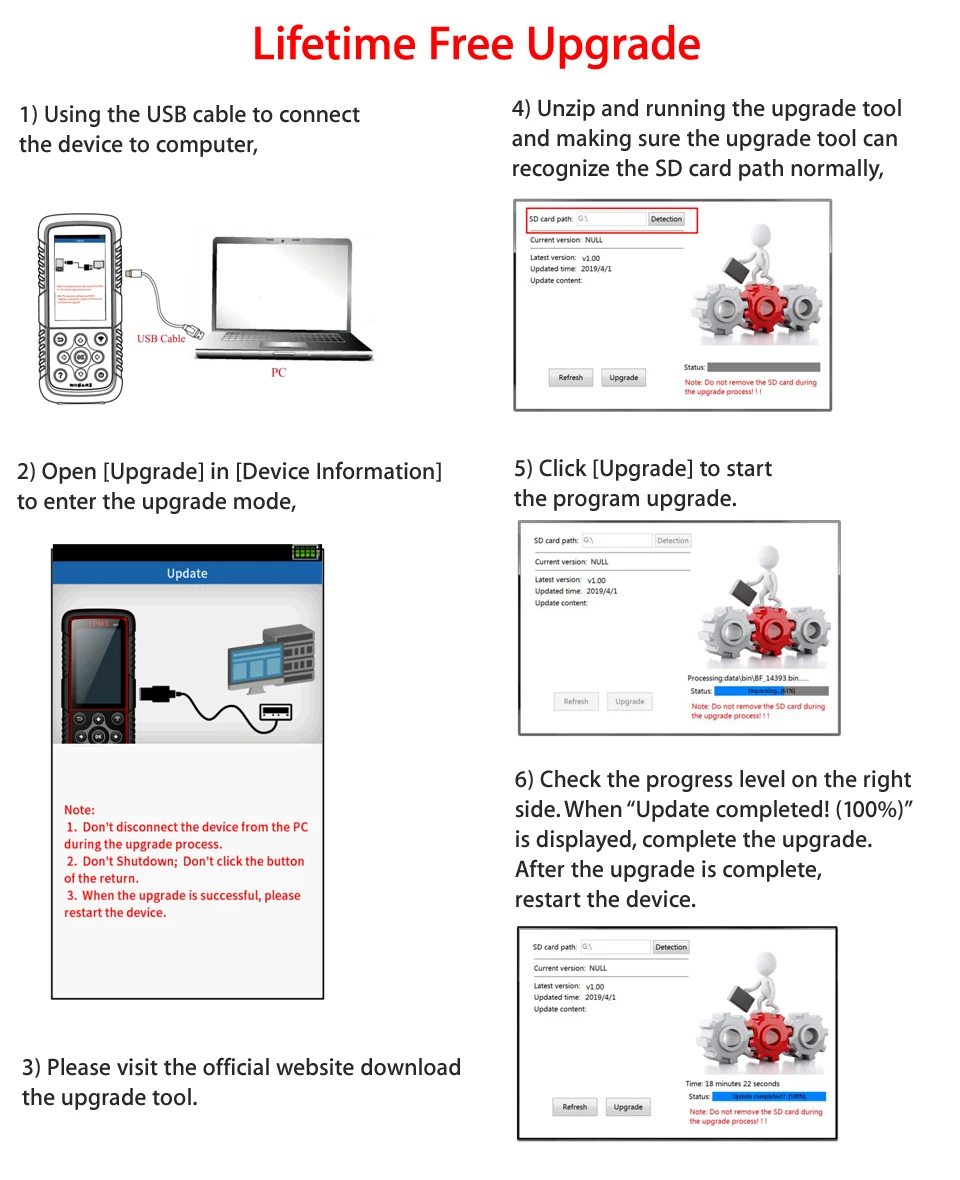

T2 OBD2 TPMS Programming Diagnostic Tool Upgrade via SD Card:

Please update your device software on a Windows-based computer. Make sure your computer is connected and working. Update Steps As Follows: 1) Using the USB cable to connect the device to computer 2) Open [Upgrade] in [Device Information] to enter the upgrade mode 3) Please visit the official website download the upgrade program. 4) Unzip and running the upgrade program and making sure the upgrade program can recognize the SD card path normally 5) Click [Upgrade] to start the program upgrade. Note: a. During the upgrade process, do not disconnect or remove the SD card, do not shut down or perform a return operation; b. When upgrading, please turn off the anti-virus software on your computer. 6) Check the progress level on the right side. When “Update completed! (100%)” is displayed, complete the upgrade. After the upgrade is complete, restart the device.

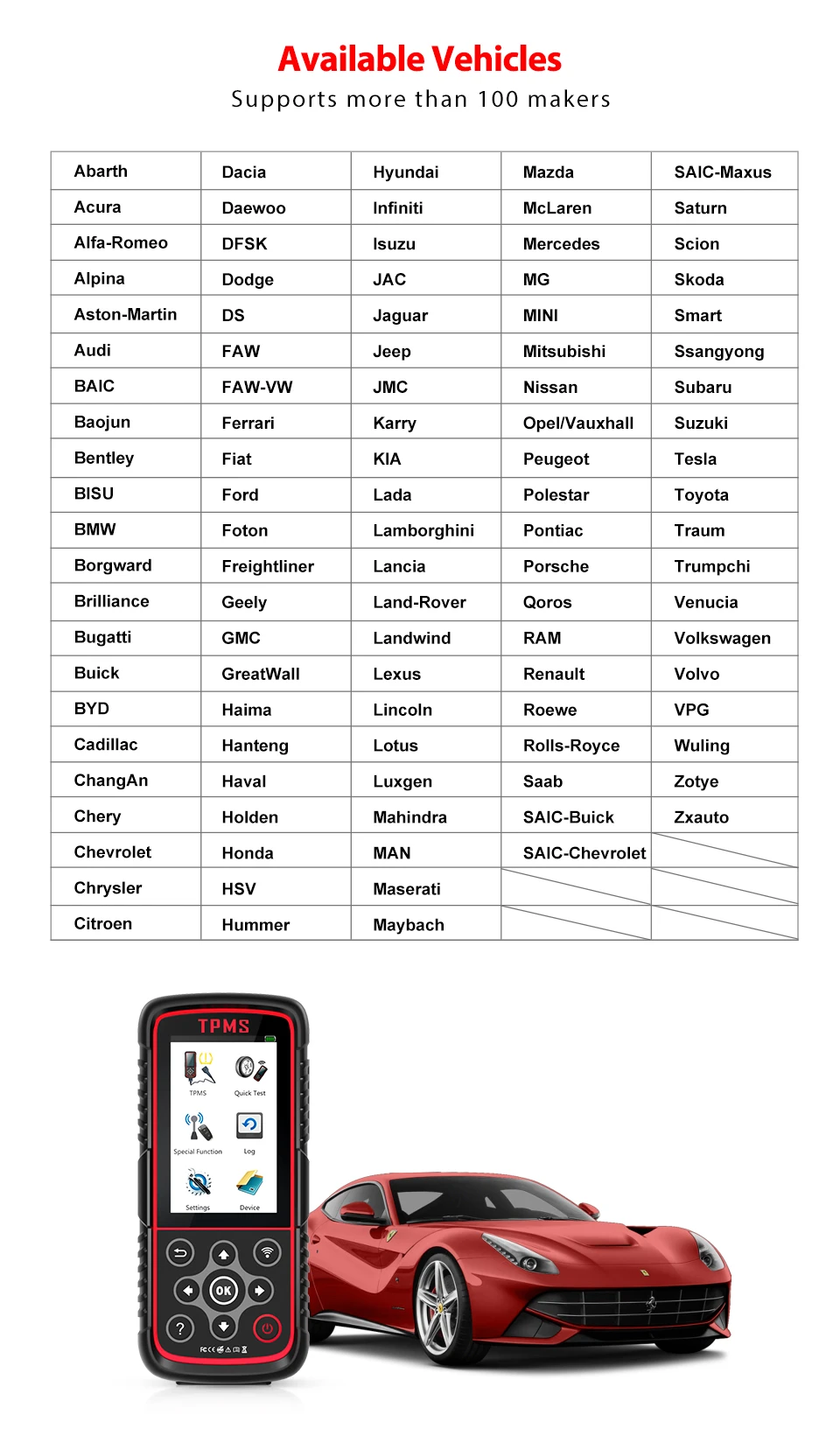

T2 OBD2 TPMS Sensor Diagnostic Available Vehicles

Supports more than100 makers

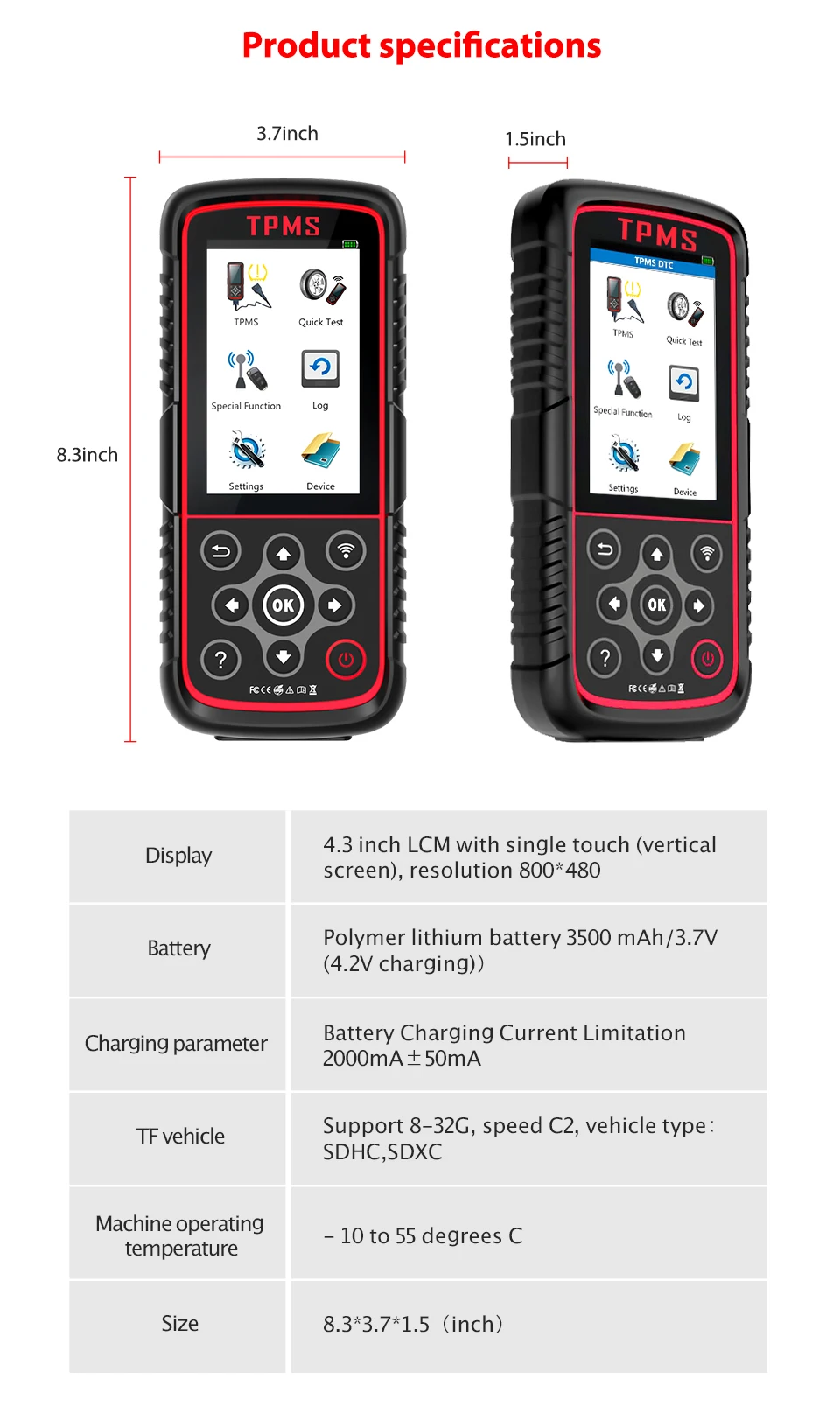

T2 OBD2 TPMS Programming Tool Specifications

Display: 4.3" LCM with single touch (vertical screen), resolution 800*480 Battery: Polymer lithium battery 3500 mAh/3.7V (4.2V charging)） Charging parameter: Battery Charging Current Limitation 2000mA±50mA TF vehicle: Support 8-32G, speed C2, Vehicle Type：SDHC,SDXC Operating temperature: From -10 to 50 ℃ Size: 8.3 * 3.7 * 1.5 inch

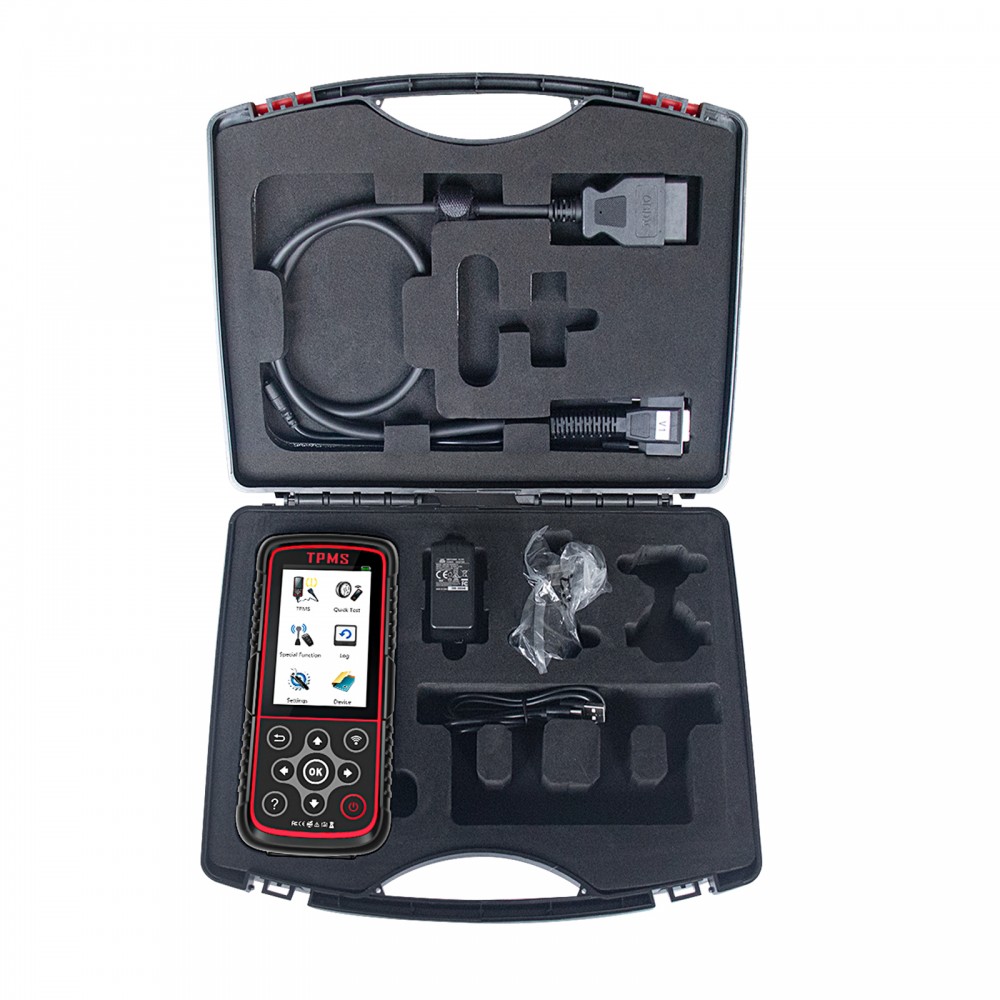

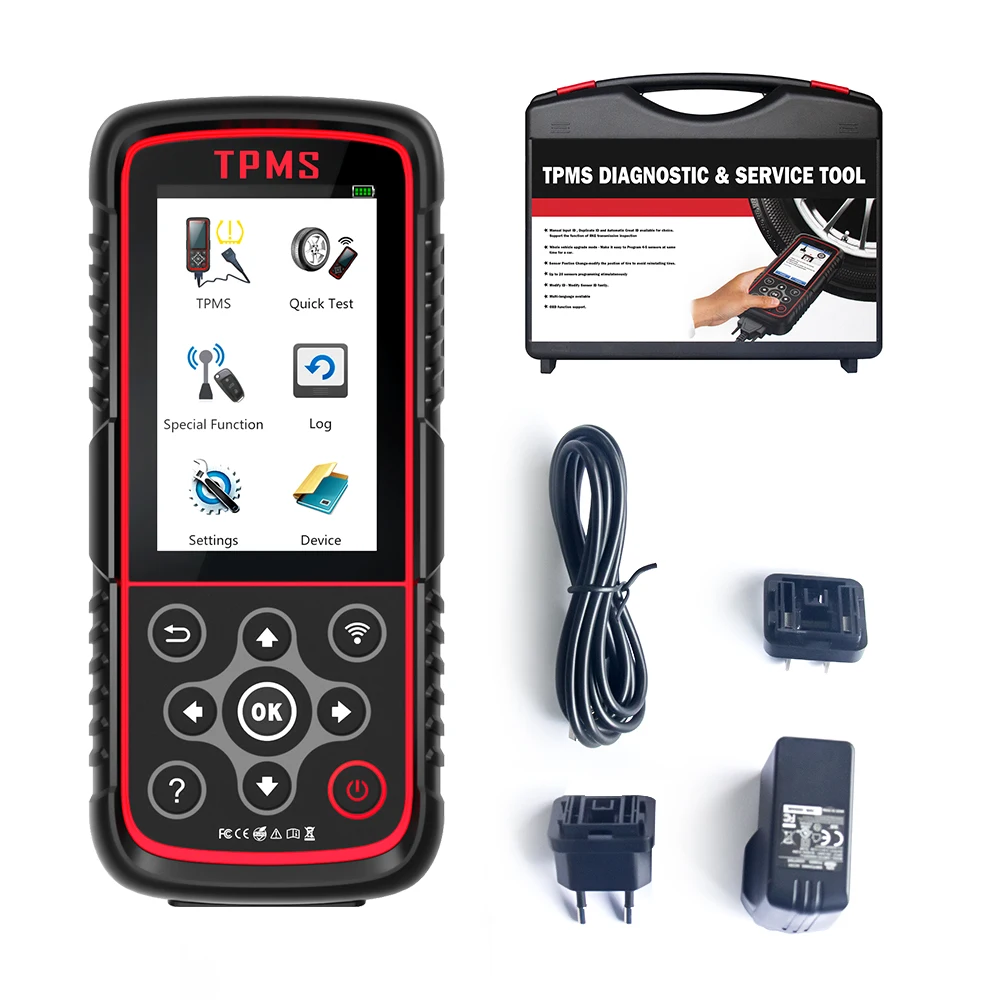

Packing List:

1pc * T2 OBD2 TPMS Programming Diagnostic Tool 1pc * Carry case 1pc * Charger 1pc * USB Cable 1pc * OBD2 Cable 1pc * User's Manual
