Producti description:

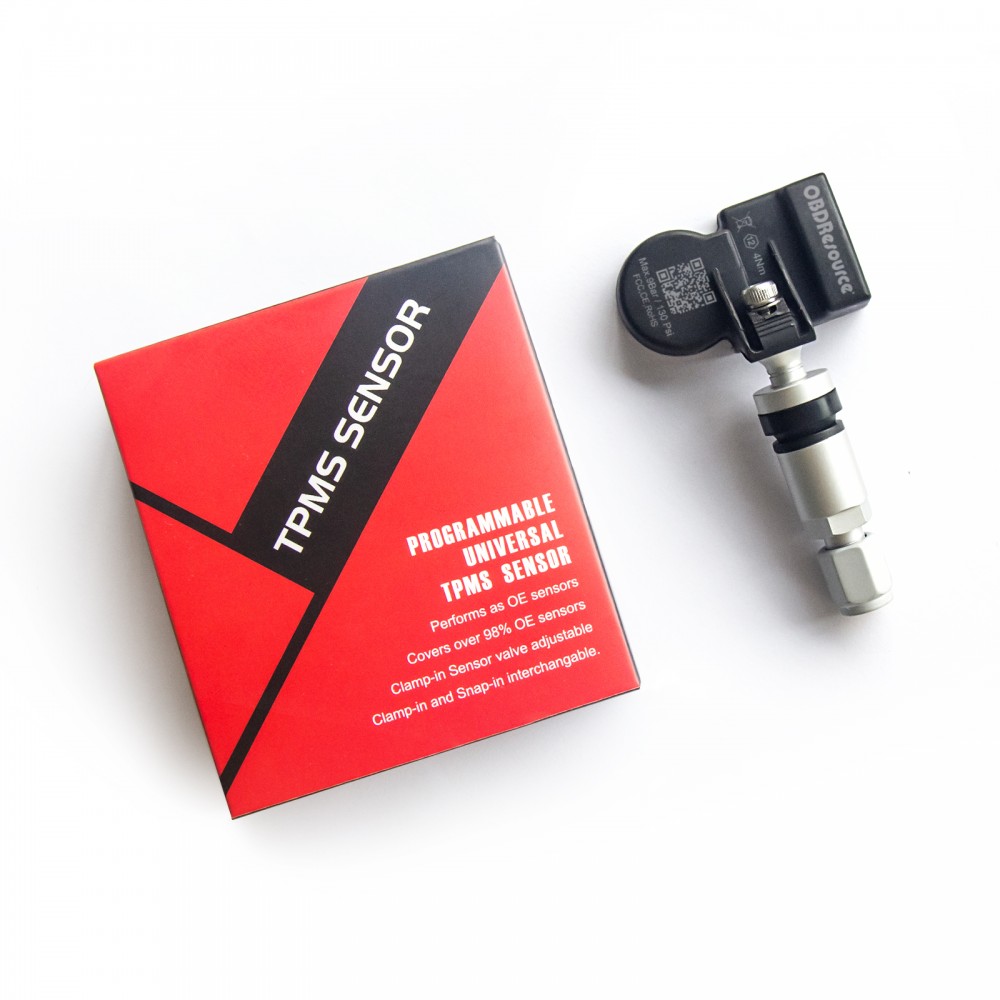

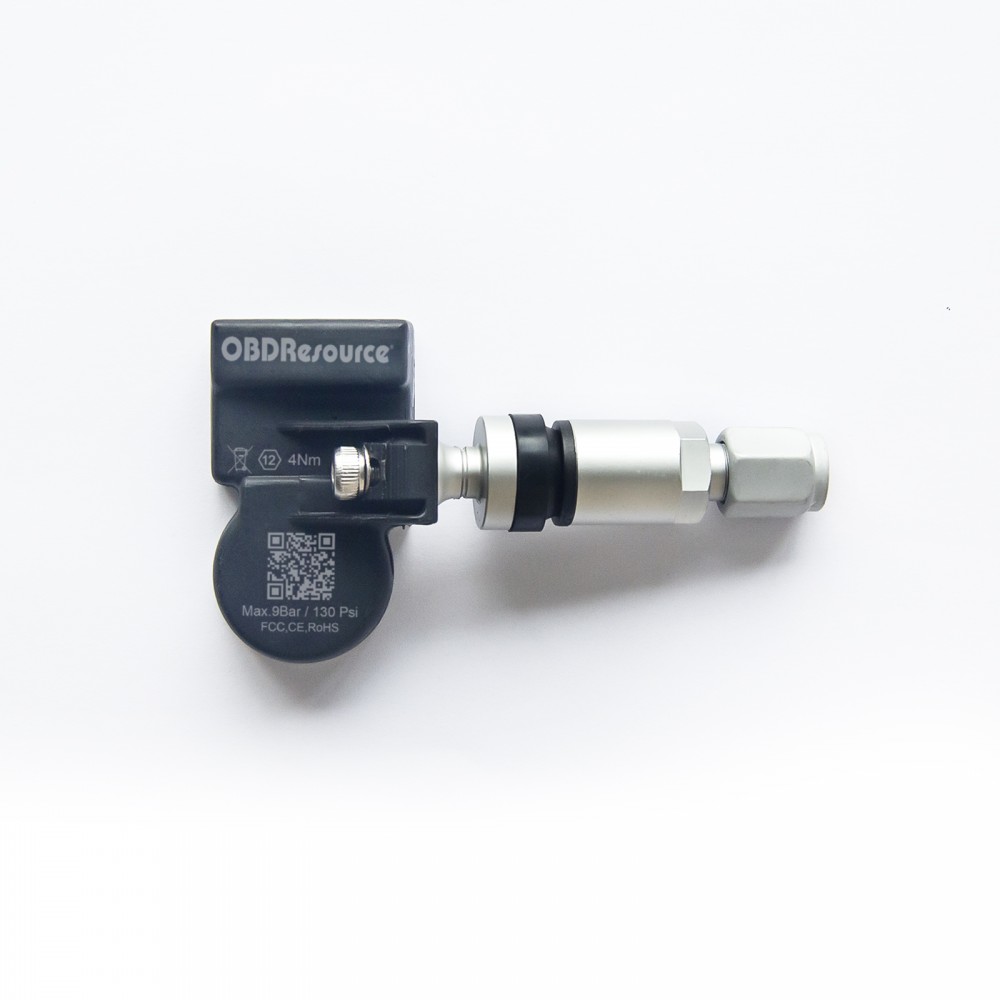

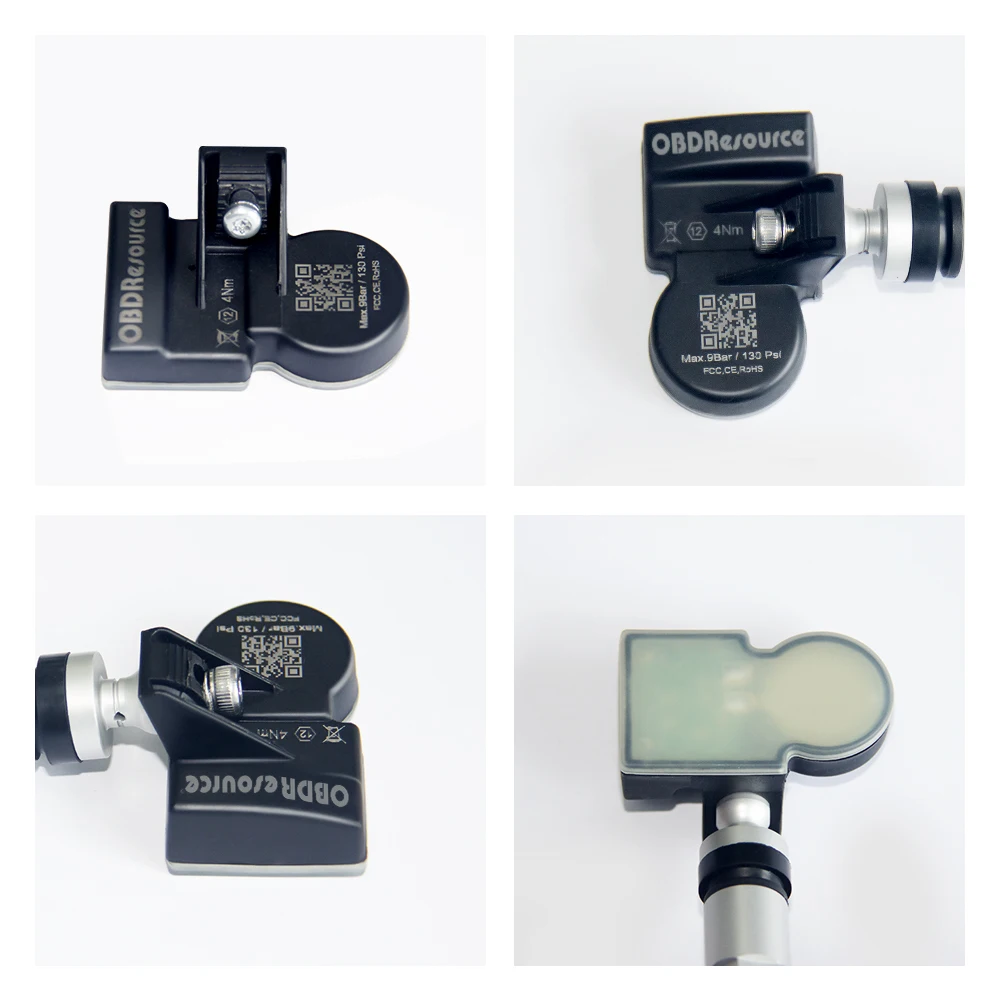

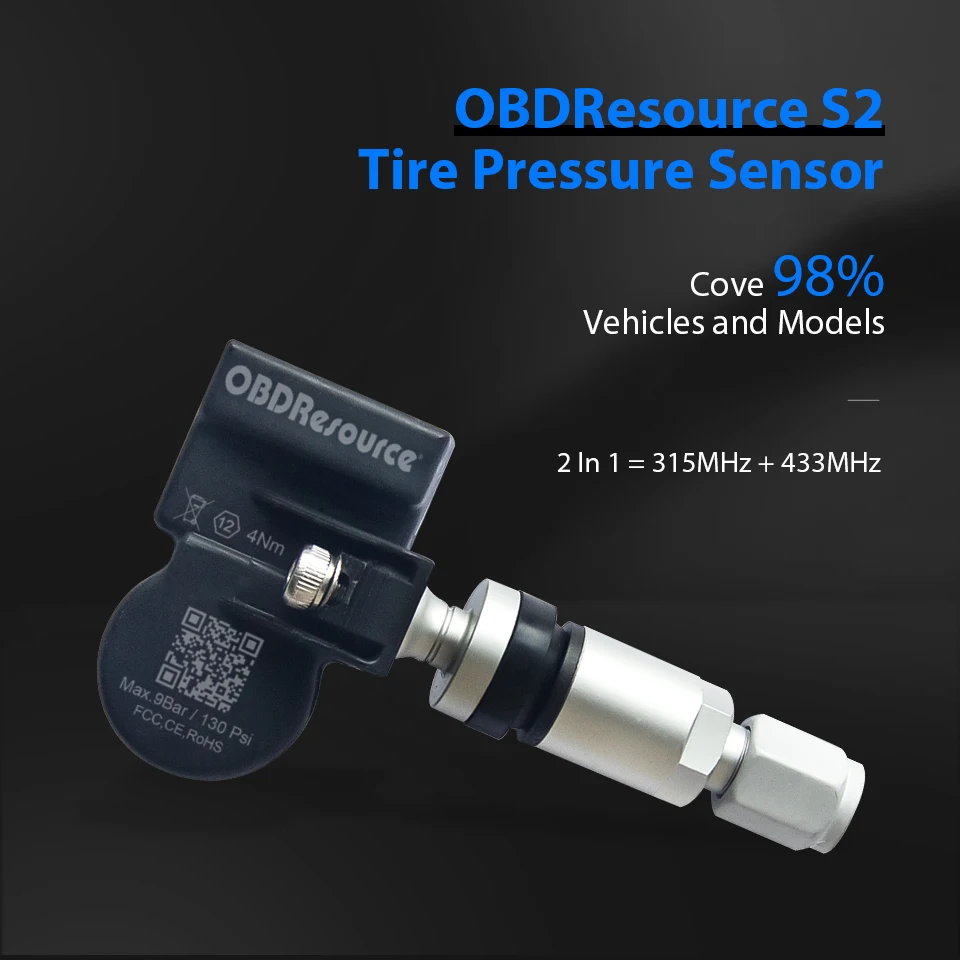

Clamp-In OE-Level Programmable Sensor for Tire Pressure Monitoring System (TPMS) 100% Cloneable + Fits 98% Mainstream Vehicles OBDResource S2 Universal TPMS Sensor 2 In 1 315MHx + 433MHz, as a programmable universal sensor featuring in Clamp-in and Snap-in options which?? are both smart and efficient specially built for sensor replacement with maximum application coverage, ease of use, OE-level fit, performance and reliability, will help users economize the cost of diagnostic work and raise the repair efficiency greatly.?? OBDResource S2 Universal TPMS Sensor 315 433 MHz Effectively Improve Driving Safety High-Speed Accident Mostly Due To A Blow Out Tire Aging/ Tire Leak/ High Temperature/ Speeding/ Overloaded Five Reasons to Choose OBDResource S2 Universal TPMS Sensor 315 433 MHz

Feature:

2 In 1 315MHz + 433MHz Only 1 Sensor to service nearly every TPMS equipped vehicle to lower repair cost and to have higher install efficiency. 【98% Vehicle Coverage】 Featuring the latest and most comprehensive coverage of 98% OE sensors on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road. 【Maximun Signal Strength Wireless Programming】 The extraordinary sensor signal strength allows OBDResource S2 sensor to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. And with strong signal strength, now up to 20 sensors can be programmed in one session with OBDResource T1/T2 TPMS tools, OBDResource S2 sensor is 100% cloneable. No relearn is required when the S2 sensor is cloned with the original sensor ID and put in the same position. 【Superior Battery Reliability Lower Sensor Weight】 With the highest quality materials and advanced TPMS technology. OBDResource S2 sensor provides superior battery life and reliability, to match OE sensor battery performance. The S2 sensor body weight only 12g, making it significantly lighter than most sensors in the market, which ensures better sensor stability and performance. 【SAE Tested & Certified Strict Quality Control】 OBDResource high quality S2 sensor is tested and certified to meet SAE industry standard J1205 / J1206 testing. OBDResource guarantees S2 sensor are free from manufacturing defects for a peroid of 24 months or 24,000 miles, whichever option comes first. Each OBDResource S2 sensor has a series number for assuring quality control. The series number is imprinted on the sensor or can be read with OBDResource TPMS tools, With the series number, OBDResource can tracking the sensor quality from our factory manufacturing to ensure only the highest quality parts are installed.

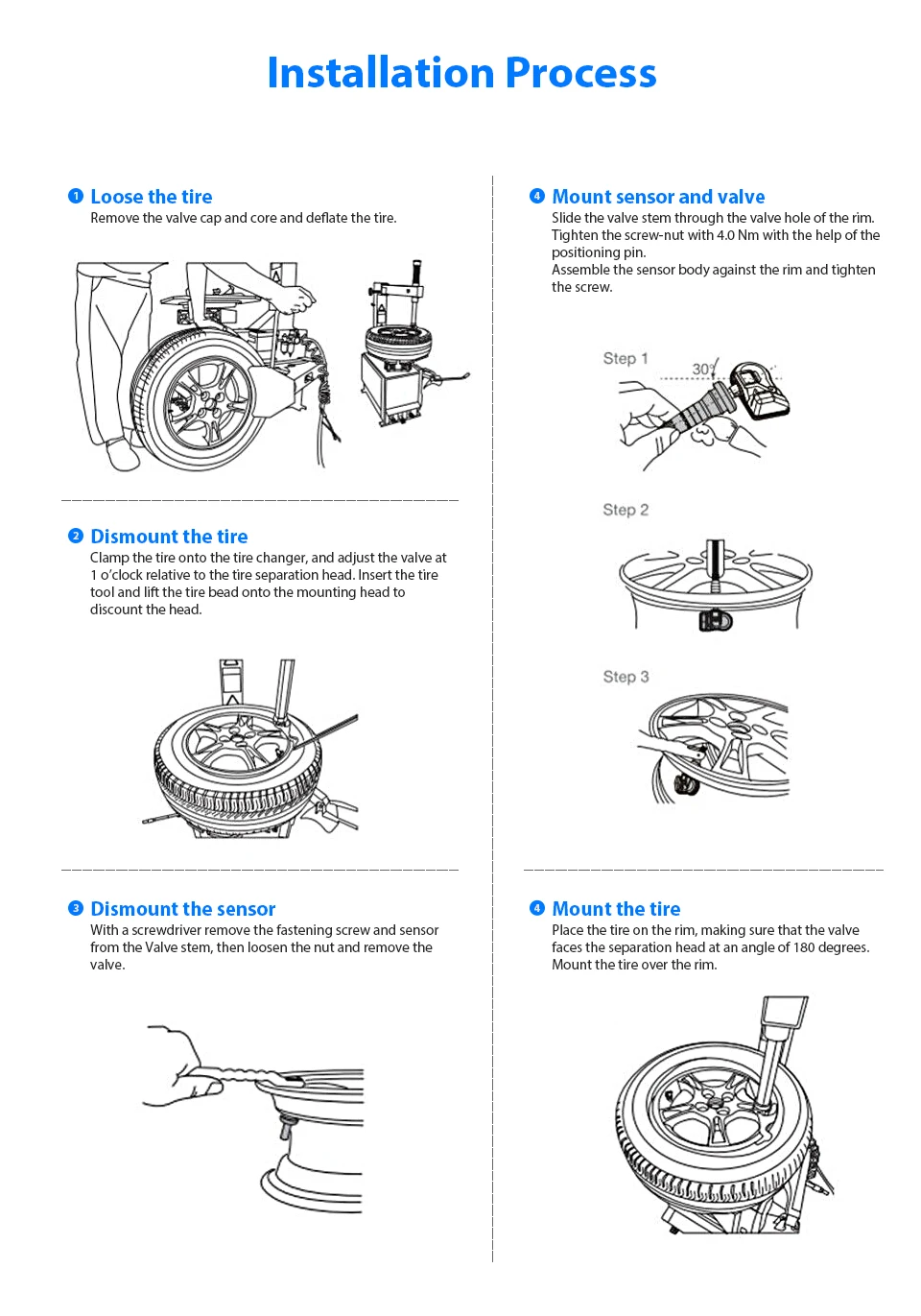

Installation Process:

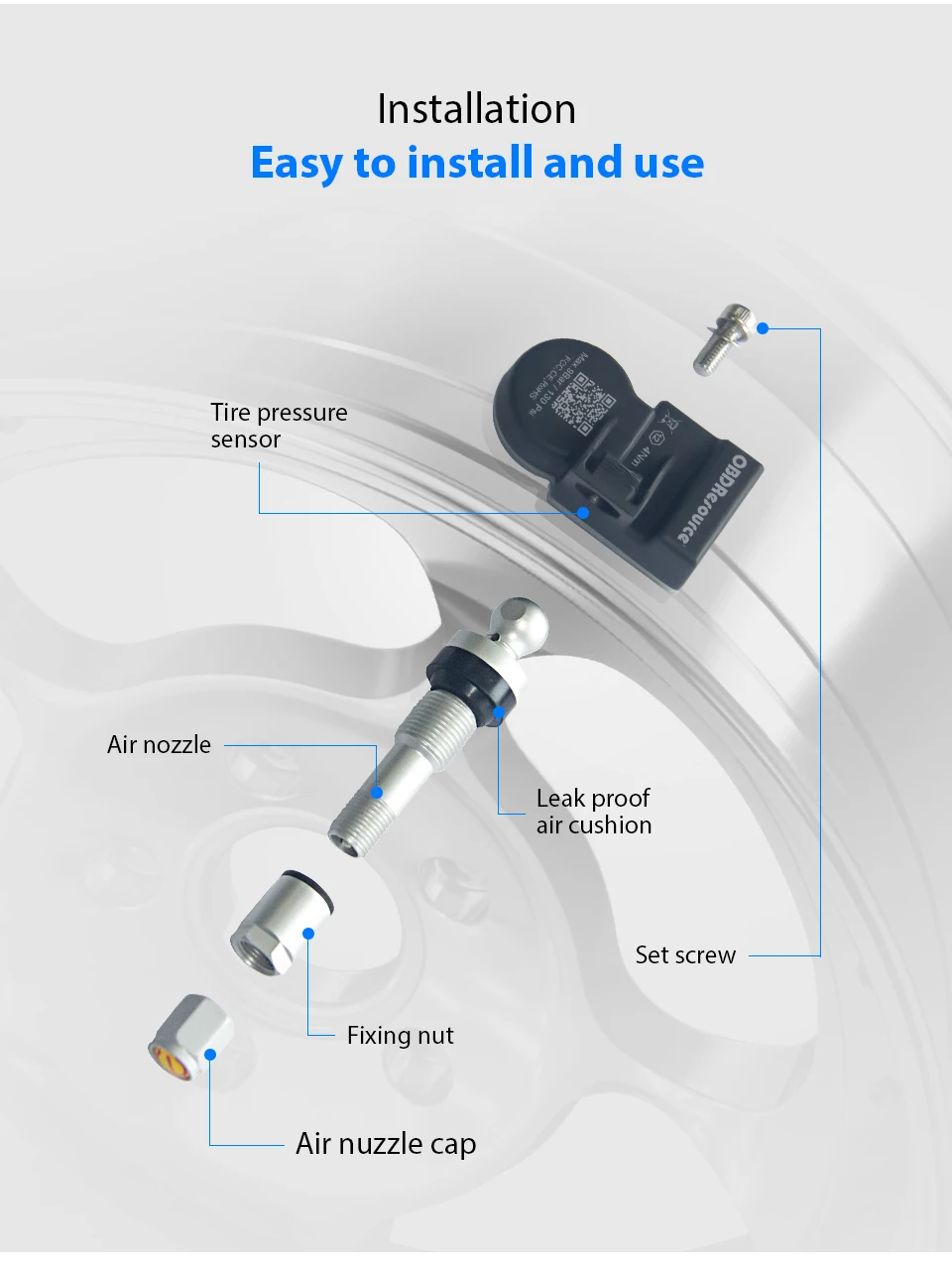

Installation Easy to install and use Tire pressure sensor Leak proof air cushion Air nozzle Fixing nut Air nuzzle cap Set screw 【Loose the tire】Remove the valve cap and core and deflate the tire. 【Dismount the tire】Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head. 【Dismount the sensor】With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve. 【Mount sensor and valve】 Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw. 【Mount the tire】Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.

■ Notice

1. The TPMS sensor assemblies are replacement or maintenance parts for vehicles that have a factory installed TPMS. 2. Make sure to program the sensor by OBDResource sensor programming tools for your specific vehicle make, model and year before installation. 3. Do not install programmed TPMS sensor in damaged wheels. 4. In order to guarantee optimal function, the sensor may only be installed with original valves and accessories provided by OBDResource. 5. Upon completion of installation, test the vehicle TPMS systems using procedures described in the original manufacturer' s user guide to confirm proper installation. 6. Each time a tire is serviced or dismounted, or if the sensor is removed or replaced, it is mandatory to replace the rubber grommet, washer, nut and valve core with our parts to ensure proper sealing. It is mandatory to replace the sensor if it is extremely damaged.

Package include:

1*OBDResource S2 Sensor 1*Instruction
